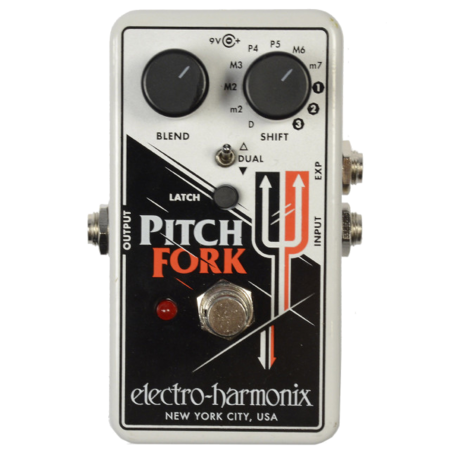

Electro-Harmonix Pitchfork

The newest in Electro-Harmonix’s line of pitch shifting pedals, the pitchfork boasts huge tonal range and above average interval selection. This pedal has a lot to offer in the realm of fixed interval shifting. The interface does leave a bit to be desired, but the overall quality of the pedal cannot be denied. This is a great space-saving way to add some harmonic diversity to your setup.

External Control: EXP
Cost: $$

HornFX Review

Interface:  3/5
The pitchfork certainly fits a lot of functionality into a small box. With a simple interval switching knob and a directional switch, you can have any of its intervals sound up or down or both together. The problems arise when you are on stage and can have a hard time seeing the position of the switch and whether or not the latch setting is engaged.

Versatility: 3/5
The Pitchfork is quite versatile for its size. Its many intervals and its ability to switch the orientation of those intervals provides the user with a lot of interesting and usable sounds. It is very close to being a harmonizer. You can get even more functionality with an expression pedal. However, you cannot have an octave and another voice on at the same time, which is slightly disappointing.

Tonal reproduction: 3.5/5
Overall , the tonal qualities are good. The octave up sounds slightly inferior to other EHX products, but the octave down sound is comparable to the Nano and Micro POGs.

Tracking speed: 3.5/5
Slightly above average tracking

Live application: 3.5/5
This is a solid live stompbox. The controls are easy enough to manipulate, making presets almost unnecessary. It produces its intended effects very well and can be a wonderful addition to a board in need of some pitch manipulation

Product Information

The Pitch Fork transposes an instrument’s pitch over a +/- three octave range and features three modes which allow the pitch to be transposed up, down or both, simultaneously. The pitch shift amount can be set to a fixed interval or continuously varied by an expression pedal or control voltage.
The controls are straightforward and intuitive. An 11-position Shift switch selects the maximum transposition interval ranging from D (Detune), a shift of 17 cents, through Minor 2nd, Major 2nd, Major 3rd, Perfect 4th, Perfect 5th, Major 6th, Minor 7th, 1 Octave, 2 Octaves and 3 Octaves. A three position toggle switch controls whether the pitch is transposed up, down or both. In Dual mode, two pitch-shifted signals are output. One follows the shift knob as if in the Up position while the other creates a harmony. Dual Mode settings include M3 up + P5 up, P5 up + 1 Oct down, 1 Oct up + 1 Oct down and many others. A Blend knob controls the mix of the dry signal and the effected signal, and an EXP jack enables the player to control pitch and glissando with an expression pedal.
The Latch button selects Latch or Momentary mode which affects how the footswitch and EXP input behave. In Latch mode, the footswitch toggles between effect on and buffered bypass each time it’s pressed and the EXP input continuously varies pitch. In Momentary mode the effect is only on while the footswitch is depressed and when it is released the Pitch Fork goes into bypass.
In Latch mode the EXP input controls pitch shift amount, ranging from unity to the interval set by the Shift knob, and pitch varies continuously throughout the expression pedal’s range. In Momentary mode the EXP input controls glissando rate for the Pitch Fork’s footswitch. When the bypass footswitch is pressed, the Pitch Fork jumps from bypass to the interval set by the Shift knob. The amount of time it takes to reach that new note is the glissando rate. When the footswitch is released the pitch will return to unity at the same rate. That glissando time can vary between 4 milliseconds to two seconds depending on the heel/toe position of the expression pedal. The default glissando rate is 60 milliseconds when nothing is plugged into the EXP input.
The Pitch Fork comes equipped with an EHX 9.6DC-200mA power supply and also runs on a 9Volt battery.

Transposes over a +/- three octave range
- Three shift modes: up, down or dual
- 11-position Shift knob selects the transposition interval
- EXP input lets you control pitch shift or glissando via optional expression pedal
- Latch and Momentary modes affect how the footswitch and EXP input behave
- Comes with EHX 9.6DC-200mA AC Adapter, can also run off a 9V battery
- Dimensions in inches: 2.75 (w) x 4.5 (l) x 2.1 (h)
- Dimensions in mm: 70 (w) x 115 (l) x 54 (h)

Product info taken from the EHX website.
