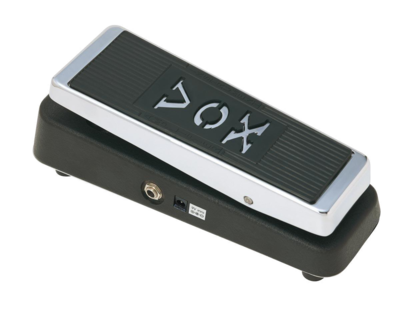

VOX V847A Reis Wah


Vox has endeavored to make an exact recreation of their original wah pedal from the 60’s. They have achieved their goal beautifully in the world of guitar, but the older design may not be of help to horn players. With the wonderful addition of AC power so that you do not have to spend your life’s savings on batteries, they have improved on a classic. Sadly, this pedal does not seem to work well with trumpet. Saxophone players have had more luck with it, but there is still some thinness of tone and a lack of presence of the effect.

External Control: None
Cost: $

HornFX Review

Interface:  4/5
As with most wah pedals, the interface is the definition of simplicity. Just click it on and rock.

Versatility: 1/5
A shiny one trick pony.

Clarity of effect: 1.5/5
The V847 does not respond to a trumpet input very well at all. The sound is thinned out and the sweep is very small and has no discernable depth. With a saxophone, the Vox had tonal issues as well. The tone is thin and the effect is quite unclear and muffled.

Complexity: Simple

Complexity: Simple

Live application: 3.5/5
Were it not for the sonic issues, this would be a great live pedal. It functions as simply as one could hope for and it surely looks great.

InterfaceVersatilityClarity of EffectLive ApplicationTotal Score
4/51/51.5/53.5/510/20

Product Information

Based on the specifications of the original pedal developed by VOX in the ’60s, the new Wah-Wah offers guitarists the same legendary tone with the addition of AC power capability and a buffered input jack for preserving the unprocessed guitar tone when the pedal is not engaged. The pedal’s inductor has undergone a redesign to be closer in specification to the original VOX wah inductors, for improved dynamics and tone. These additions will benefit players of all genres who use a wah pedal as an integral part of their sound.

Input/Output jacks: INST jack, AMP jack, DC i/p jack.
Power supply: One 9V DC battery 6F22(S-006P)
Power consumption: 540uA @ 9VDC
Battery life for continuous use: approximately >100 hours with manganese battery (will vary depending on conditions)
Dimensions: 102(W) x 252(D) x 75(H) (including rubber feet, pedal in lowest postion)
Weight: 1673g (including battery)

Product info taken from the Vox website.
